AWCLOCK Architrave Antimicrobial 'Touch to Lock' Toilet Sensor

£65.98 EX VAT

Architrave Touch to Lock toilet sensor with a scratch resistant, antimicrobial acrylic label.

The sensor is normally used in conjunction with our disabled toilet door locking system. It is installed inside the toilet and used to lock and unlock/open the toilet door. The red & blue LEDs give assurance to the user that the door has locked successfully.

The sensitivity is adjustable from touch to 60mm hands free, making it very hygienic. If touched SteriTouch® offers protection against a range of bacteria, including the Flu Virus, E. coli, MRSA, Salmonella and Legionella, as well as black mould growth, biofilm and fungi.



mp3 audio messager

Additional information

Weight 0.14 kg
  • Architrave internal touch sensor for disabled toilet system
  • User touches switch to lock or unlock the door
  • 12-28Vdc
  • 4 position sensitivity adjustment (Touch to 60mm hands free)
  • Entire label is sensitive
  • Red & blue LED indicators to show engaged/vacant status
  • Sounder on activation
  • Reinforced nylon housing
  • Scratch resistant antimicrobial acrylic label with Steritouch additive, kills 99.9% of germs!
  • IP65 rated

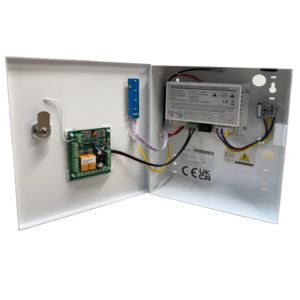

  • Link out the door switch terminals on the control board.

  • If this works, check:

    • Maglock reed switch wiring

    • Monitoring cable

    • Armature plate alignment

  • The maglock must provide a normally closed signal when the door is shut.

After each step, power down the system for 10 seconds before restarting.

  • Ensure the sensor is securely mounted—not dangling or held in hand.

  • Check the jumper next to the sensor relay is fitted and seated properly.

  • Use a multimeter to check voltage across +V and 0V at the sensor.

  • Confirm 0V is in the correct terminal, not the REM terminal.

  • Bypass cabling by wiring the sensor directly to the power supply using a short lead.

  • Confirm the maglock contacts are wired to the door switch terminals on the control board.

  • Set the potentiometer on the internal sensor for a 3–5 second delay.

  • Reduce sensor sensitivity, especially near emergency lights or hand dryers.

  • Remove excess cable from the sensor’s back box.

  • Re-terminate all sensor connections.

  • Remove the two wires from C and NO terminals on the control board.

  • Touch them together:

    • If the door still doesn’t open, the issue is with the door operator—contact the supplier.

  • Check the override keyswitch on the external sensor.

  • Ensure the break glass hasn’t been pressed.

  • Inspect the lock fuse.

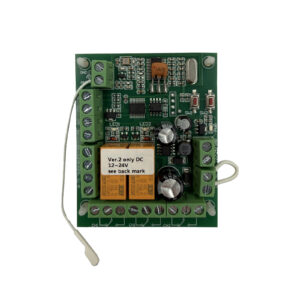

  • Link out the NC & KS/BG terminals on the control board:

    • If the system works with the link in place, and the keyswitch & break glass are in correct positions, there may be a cable fault.

  • Use a multimeter to check for voltage at the maglock.

    • If voltage is present but the lock isn’t engaging, the lock is faulty.

  • Check the LED jumper (solid/flashing) on the control board is in place.

  • For square sensors, ensure LED wires are connected to the larger outer PCB (see manual p.10).

  • Use a multimeter to test voltage at the LED terminals:

    • The sensor and LEDs use separate supplies—beeping doesn’t mean LEDs have power.

  • Bypass any cabling issues by wiring the sensor directly to the control board with a short cable.

Adjust the LED jumper position on the control board.

  • Adjust the internal sensor delay to 3–5 seconds using the potentiometer.

  • Check if the maglock contact is flickering while the sensor is still beeping.

  • Ensure the armature plate is aligned and the door isn’t juddering on opening.

  • Replace the maglock or use a standard magnetic door contact if needed.

  • Yes!

    • You can install multiple internal or external touch sensors.

    • Just wire them in parallel.
