Name: CPK5 Door Entry Kit - New Smart App Controlled Access
SKU: CPK5
Price: 172.02 GBP
Availability: InStock

Provide secure, smart access control to the entrance of your office, shop or home. Only authorised users, managed easily via Bluetooth through the TTLOCK App can unlock the door.

Add a gateway to connect the keypad to the internet and give you all of the features from anywhere in the world.

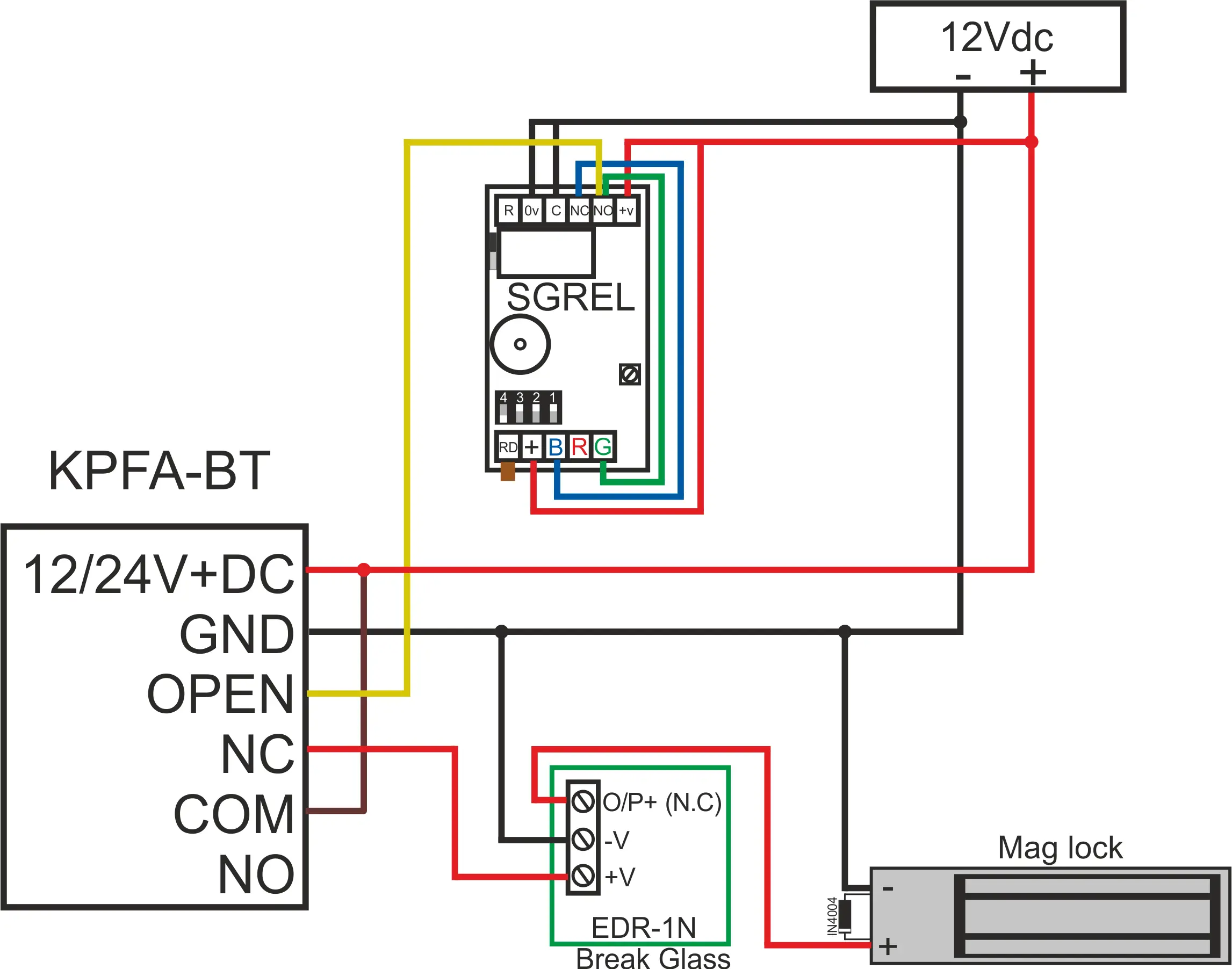

The kit Includes:

KPFA-BT – Smart keypad, fingerprint & proximity reader. Programmed and managed with TTLOCK mobile App.
CP280S – Single slimline monitored maglock. 600lbs holding force
A300ZL – Z & L brackets for simple maglock installation
PSU12V1A – Lockable metal box 12V battery back-up power supply
BATT2.1 Battery – Ensures the door remains locked during power cuts
SGREL – No touch exit switch
EDR-1N – Emergency exit resettable break glass – single pole
5 x PFOB-MF – Proximity tags

Everything you need in one box!

If you have custom requirements, please contact us and we will be happy to assist.

Have you got bespoke access control requirements? Require a fire rated mag lock, or would you just like more information on the system? Please get in touch and we will be happy to assist.

KPFA-BT Specification:

Programming and management all done via the TTLOCK mobile App
Access by keypad, proximity, fingerprint, mobile phone or remote transmitter
Add & delete users via the App
User friendly interface, no need for complicated programming procedures
Set access times for individual users - View access records
Controllers can be transferred to other users
Data can be transferred from one device to another
Supports WiFi Gateway, enabling changes to be made and the door to be opened remotely from anywhere with an internet connection. Alexa compatible
Operating voltage 12-24Vdc
Waterproof, conforms to IP66
Strong anti-vandal zinc alloy powder coated housing
PIN user capacity: Custom: 150 Dynamic: 150
Card user capacity: 200
Fingerprint user capacity: 100
Card frequency 13.56MHz Mifare
Backlit touch sensitive keys
Pulse (adjustable) or toggle mode
Terminal connections
Dimensions: 148 x 43.5 x 22mm

Power supply:

12V 1A output
Lockable metal box
Battery charging circuit
195 x 80 x 225mm

CP280S:

Holding force: 280KG (600lbs)
Lock size: 250L x 48.5W x 25H (mm)
Armature plate size: 180L x 38W x 11H(mm)
Voltage: 12 or 24Vdc

SGREL:

DDA Compliant
4 position sensitivity adjustment (Touch to 50mm hands free)
Timed clean relay output
Selectable blue, green or red LEDs
Sounder on activation
Scratch resistant anti microbial acrylic label. Supplied with screw covers for aesthetic purposes.
Internal use only, IP52
86 x 86 x 30mm

EDR-1N:
