CPK0 Access Control Kit

The CPK0 Access Control Kit offers everything you need for secure, reliable swing door access control. Simply add your choice of keypad, reader, or intercom for a fully customisable system. Whether it’s for residential, commercial, or industrial use, this easy to install kit is a simple solution secure your door.

Kit Includes:

CP280S – Slimline monitored maglock with 600lbs holding force for secure door locking.
A300ZL – Z & L brackets for easy installation of the maglock on inward opening doors.
PSU-BB-12V-1A – Lockable metal box 12V battery back-up power supply.
BATT2.1 – 2.1Ah battery for reliable backup during power during outages.
SGREL – No touch exit switch with LEDs and sounder, for hands-free operation.
EDR-1N – Resettable emergency break glass switch for quick lock release in case of emergency.

This access control kit has everything you need in one box to create a seamless, secure access control system for swing doors.

Got bespoke requirements? Need a fire rated lock or a different exit button? Please contact our team and we will be happy to help.

Power supply:

• 12V 1A output
• Lockable metal box
• Battery charging circuit
• 195 x 80 x 225mm

CP280S:

• Holding force: 280KG (600lbs)
• Lock size: 250L x 48.5W x 25H (mm)
• Armature plate size: 180L x 38W x 11H(mm)
• Voltage: 12 or 24Vdc

SGREL:

• DDA Compliant
• 4 position sensitivity adjustment (Touch to 50mm hands free)
• Timed clean relay output
• Selectable blue, green or red LEDs
• Sounder on activation
• Scratch resistant anti microbial acrylic label. Supplied with screw covers for aesthetic purposes.
• Internal use only, IP52
• 86 x 86 x 30mm

EDR-1N:

• Single pole
• Emergency Door Release
• Includes audible/LED (selectable)
• Includes plastic front covers which flip up for operation.
• Resettable
• 87 x 87 x 60mm

Warranty - 2 years on SGREL and 1 year on all other items.

📄Kit Datasheet

📄Mag Lock Datasheet

📄Power Supply Datasheet

📄Exit Switch Datasheet

📄Break Glass Datasheet

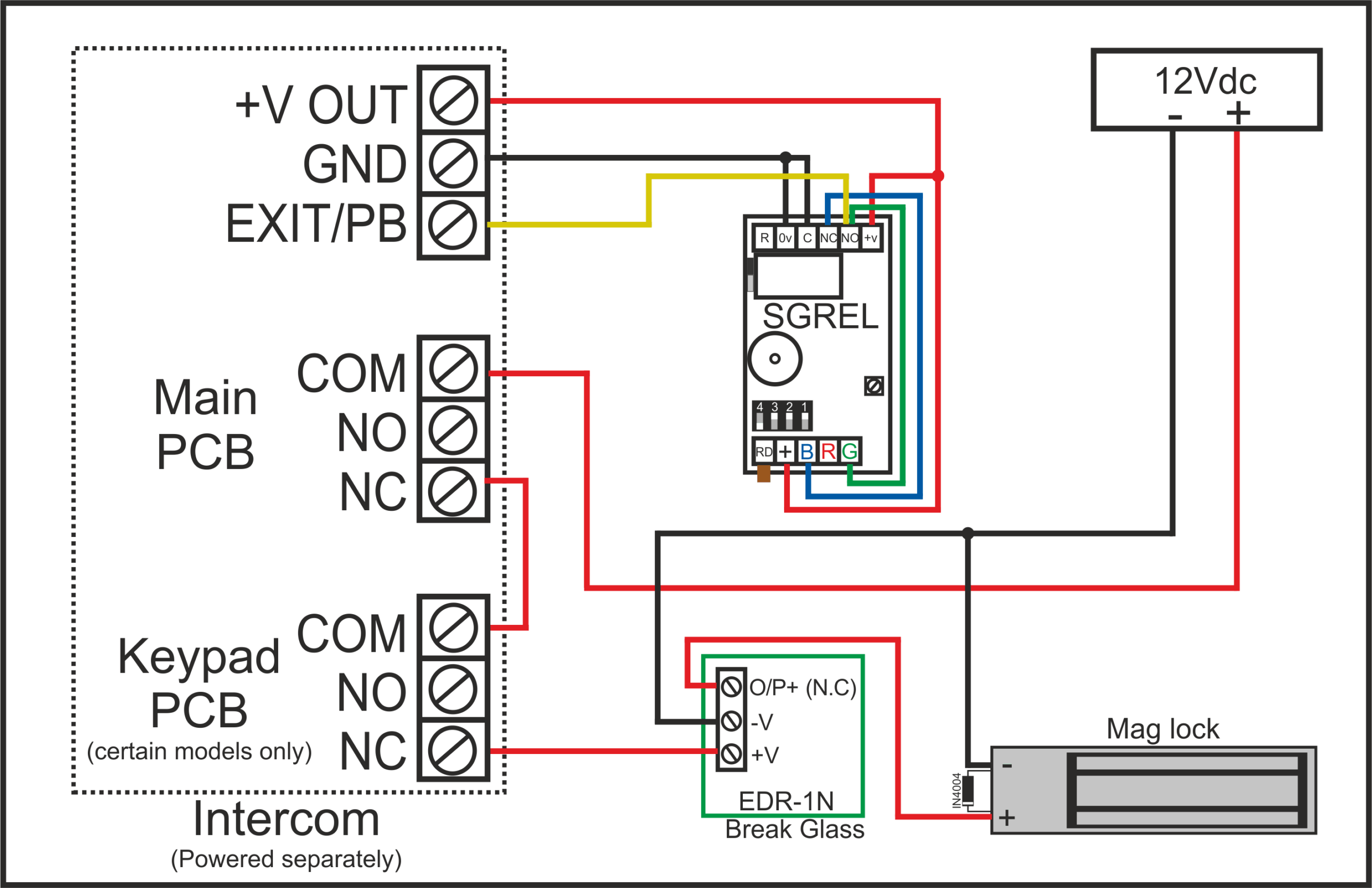

Wiring diagram
