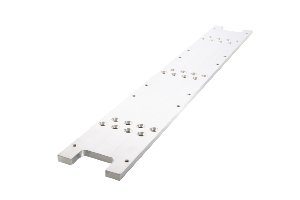

FD20 Gilgen Swing Drive Operator

From £800.00 EX VAT

The Gilgen FD20 swing door operator is strong, highly versatile, and suitable for new installations or building upgrades. All door types, including fire doors, can be easily automated and ideal for internal lightweight and external heavyweight doors.

This Swing Door Drive Unit is powerful enough to act as an exterior door, able to open comfortably in adverse weather conditions, but is also suitable for internal use.

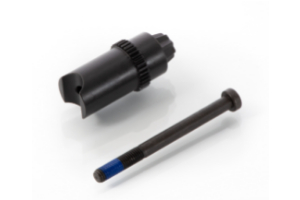

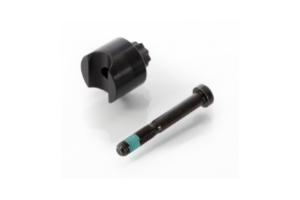

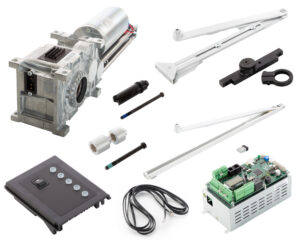

The electromechanical drive unit ensures that the door operates quietly and smoothly. The unit can be supplied with various different rod assembly configurations for installation in all manner of positions. This allows it to be optimised to match the architectural design of the building. Thanks to the wide range of functions offered, the user is sure to obtain a fully-customised, automatic door.

Operations

  • All-pole main switch allows safe and easy disconnection from the mains by customers
  • Easy-to-use integrated display and joystick
  • Built-in program selector makes changing operating modes simple
  • Long service life through USB interface powered software updates
  • Efficient energy supply and low standby consumption via switched network-supply unit
  • Closing-force adjustment screw makes setup and installation straightforward

Automatic operator

The swing door operator has a spring force and adjustable closing (EN 3-7) for different door leaf widths under EN 1154.

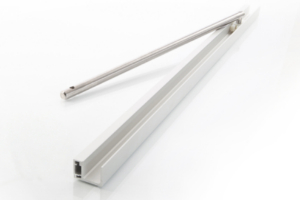

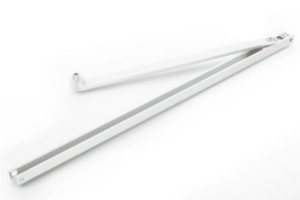

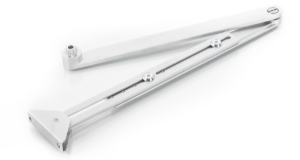

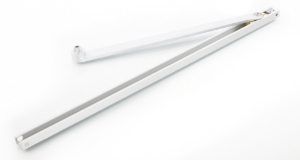

Fully automatic or low energy operations are complete with back check and adjustable hold open, transom mounted with standard rods/sliding rods fitted to the door leaf.

Integrated INVERSE function- If required, the FD 20 can be configured to ‘Inverse’, in order for the door to always fail in the OPEN condition. This is especially suitable for smoke ventilation or emergency escapes.

  • Operator height 95mm, depth (back to front) 120mm, width 690mm
  • Wind load regulation and integrated LCD control panel
  • Maximum door leaf weight of 250kg
  • Maximum leaf width 1600mm. Minimum door width 720mm

Unmatched Functionality

  • The FD20 incorporates Full Power, Low Energy, and Inverse functions in one unit
  • Electromechanical opening system
  • Controlled spring-actuated closure with motor assistance and in the event of a power failure

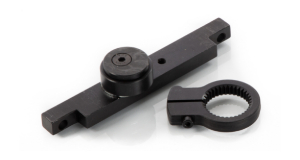

  • No travel stops required except fire-rated doors

Activation and control system per door set

  • Built-in program selector keys are located on the side of the operator
  • Key switch configured for off, automatic, and hold open operating modes

Entry & Exit

  • Activation sensor ensures door opens on approach
  • Stainless steel push plate – engraved with your choice of wording
  • Access control system is simple and easy to use

Safety in an emergency

  • Controlled spring-actuated closure in the event of a fire or power cut
  • «Invers» power-down function for smoke and heat extraction
  • Available with an optional smoke detector
  • FD20 can work with 4Safe and Flat Scan 3G Infrared safety sensors or a safety provider of your choosing. They are mounted on the top rails of the front and back of the door, providing maximum safety in compliance with EN 16005
  • Customers must buy and install suitable finger protection to comply with EN16005 & the Machinery Directive 2006/42/EC, to protect against potential hazards caused at the hinge or pivot stile

Reliable everyday operation

  • Obstacle-detection system has an automatic stop and reverse mechanism to avoid safety issues
  • Door-mounted safety sensors
  • Smooth, noise-free operation
  • Has a very low power consumption when in standby mode (4 watts)
  • Illuminated program selector keys integrated in side cover for visibility
  • Intelligent wind-load compensation for external use in high wind areas

Heavyweight external door

  • Integrated protection designed to reliably open and close whilst withstanding winds of up to 80km/h
  • Smooth operation with functions including reinforced closure and adjustable hold-open time
  • External elements and accessories are electrically powered
  • No results
RX-MINI-1-PLUS
KEEP CLEAR STICKERS
Assisted Door Sticker
automatic door sticker

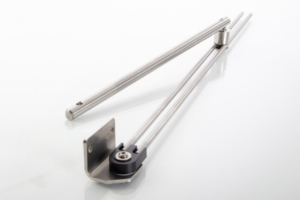

Gilgen FD20 Swing door drive operator with 104 arm 45-FD20 KIT C
