EL00IG-RAD AES In-Ground E-Loop – Presence & Exit modes Available
From £375.48 ex VAT
The Commercial Inground E-Loop offers all the advanced features of the surface mounted commercial e-LOOP, but with a flush-fit design that installs seamlessly into the pavement. Its low-profile, unobtrusive appearance eliminates tripping hazards and visual clutter, making it ideal for areas where safety and aesthetics are a priority.
Designed for demanding environments, the inground unit delivers exceptional durability and can withstand heavy vehicle loads, perfect for high traffic locations such as busy car parks, commercial entrances, and loading bays. Its discreet design and robust build make it the ideal solution for businesses seeking a professional, high-performance detection system.
The EL00IG-RAD is a premium in-ground wireless vehicle detection system designed to provide reliable, long-range vehicle detection without the cost and disruption associated with traditional wired loop systems.
Featuring advanced dual-sensing technology, the EL00IG-RAD combines multiple detection methods to deliver accurate vehicle recognition in demanding residential, commercial and industrial environments. Installed flush within the driveway surface, it offers a discreet and professional solution for automatic gates, barriers, access control systems and vehicle entry management.
Advanced Dual-Sensing Technology
The EL00IG-RAD uses advanced dual-sensing technology to provide accurate and dependable vehicle detection across a wide range of vehicle types and site conditions.
- Precise vehicle detection
- Reliable operation in demanding environments
- Not affected by ground movement
- Ideal for gates, barriers and access control systems
Long-Life Battery Performance
Powered by a high-capacity 14,500mAh battery, the EL00IG-RAD delivers up to 6 years of operation under normal conditions, helping to minimise maintenance requirements.
The innovative top-access design allows batteries to be replaced without removing the entire unit from the ground.
Reliable Wireless Communication
The wireless design eliminates the need for underground cabling while maintaining dependable communication with the transceiver.
- Wireless range up to 50 metres
- Secure 128-bit encrypted communication
- Stable and reliable signal transmission
Discreet & Weatherproof Design
Installed flush within the driveway surface, the EL00IG-RAD provides a neat and unobtrusive appearance while remaining protected from the elements.
- In-ground installation
- IP68-rated weatherproof protection
- Suitable for year-round outdoor use
- Resistant to water, dust and harsh environmental conditions
Key Features
- In-ground wireless vehicle detection system
- Advanced dual-sensing technology
- Up to 50m wireless operating range
- High-capacity 14,500mAh battery
- Up to 6 years battery life
- Top-access battery replacement
- Recessed installation for a discreet finish
- Not affected by ground movement
- Secure 128-bit encrypted communications
- IP68-rated weatherproof enclosure
- Fast installation with minimal disruption
Fast Installation, Minimal Disruption
Unlike conventional inductive loops, the EL00IG-RAD requires only a single core-drilled hole, significantly reducing installation time and costs.
Installation in 3 Simple Steps

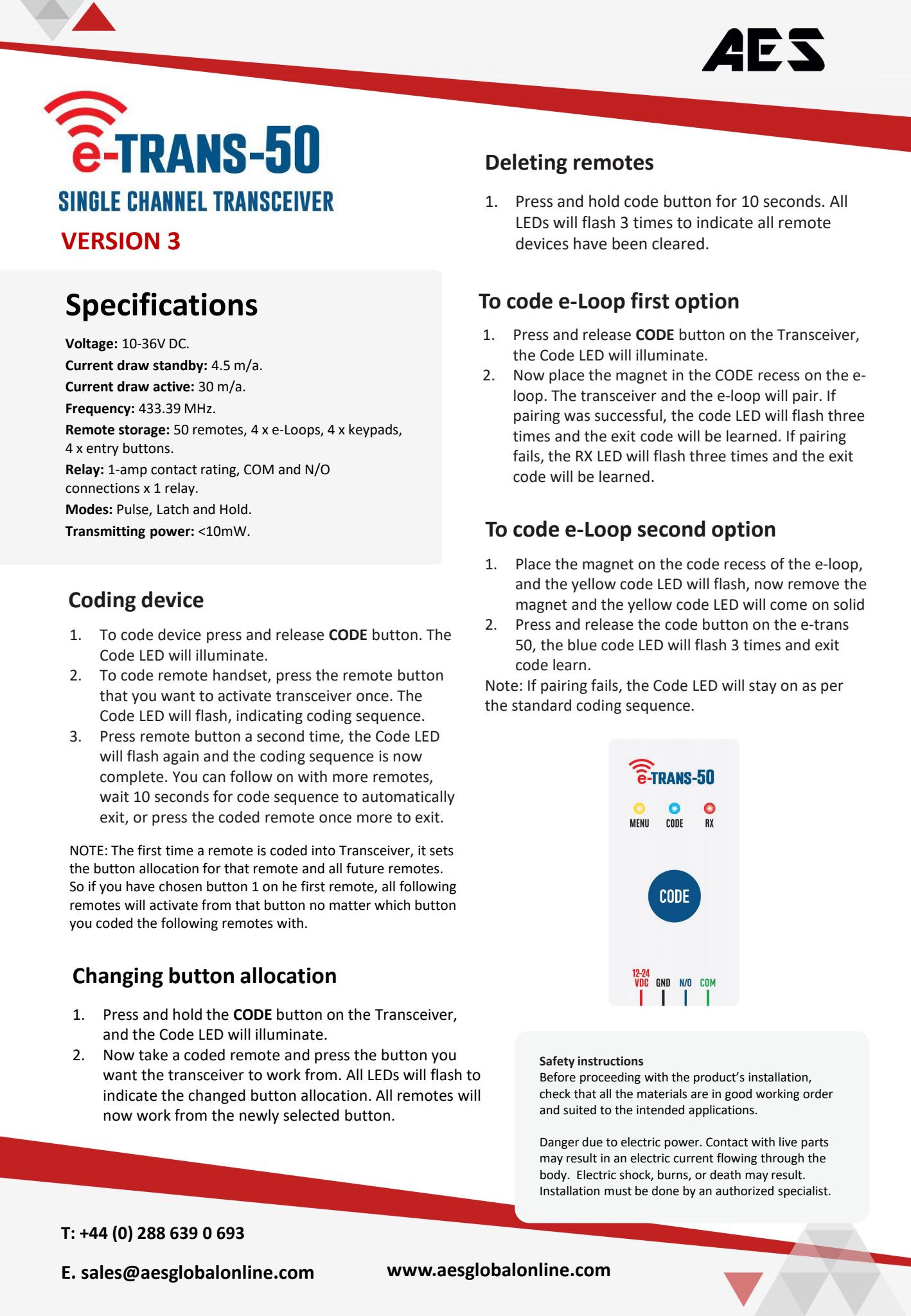

- Code the E-Loop to the transceiver.
- Core drill an 89mm diameter hole, 70mm deep, and secure the unit using flexible mastic.
- Calibrate the E-Loop and begin operation.
The entire installation can typically be completed in less than 30 minutes, saving many hours compared to traditional wired loop systems.
Features:
- Dual sensing technology.
- High security 128 bit encryption.
- Quick and easy installation.
- Recesses into the driveway.
- Not affected by ground movement.
- 14500 mA battery giving up to 10 years battery life.
- Top access for changing battery.
- Up to 50 metres range.
Ideal for:
- Automatic gates
- Commercial barriers
- Industrial access control
- Distribution centres
- Warehouses
- Private estates
- Commercial and residential vehicle entrances
