Name: FPN Secure Fingerprint Access Control Reader With Proximity
SKU: FPN
Price: 106.60 GBP
Availability: InStock

Enhance your security with this fingerprint access control reader, designed for reliable performance in both residential and commercial settings. This waterproof, metal unit combines fingerprint recognition with a built-in proximity card and fob reader, giving you a flexible and secure access control fingerprint reader solution for a wide range of installations.

Supporting standalone operation as well as Wiegand output, it integrates easily into existing systems, making it suitable for doors, gates, barriers, and roller shutters. Whether you’re securing a home, office, or industrial site, this fingerprint access control device offers dependable operation indoors or outdoors.

Perfect for:

Doors, gates, barriers, and roller shutters
Residential or commercial security
Indoor or outdoor installation requirements

Key Features:

1000 user capacity – Ideal for small to medium installations
Weatherproof metal housing – Built for long-term outdoor durability
Slimline design – Fits neatly on narrow door frames
Simple programming – Set up using master cards or the included infrared programmer
1-metre pre-wired cable – Makes installation quick and straightforward

If you need a robust access control fingerprint reader that delivers convenience and security, this unit provides everything you need. Got custom access control requirements? Get in touch with us today.

Operating voltage: 12-18Vdc
Optical fingerprint module
Waterproof, conforms to IP66
One relay output (2Amps)
Strong anti-vandal zinc alloy powder coated housing
Full programming from the remote control
Admin add/delete cards for quick programming of users
1000 users
Card frequency 125KHz EM
Wiegand 26-37 bits output
Tri colour LED status display
Integrated alarm and buzzer output
Pulse (adjustable) or toggle mode
2 devices can be interlocked for 2 doors
Built in light dependent resistor (LDR) for anti-tamper
Pre-wired 1 metre cable
Dimensions: 128 x 48 x 26mm
2 year warranty

📄Datasheet

📄Manual

🔹Mag lock

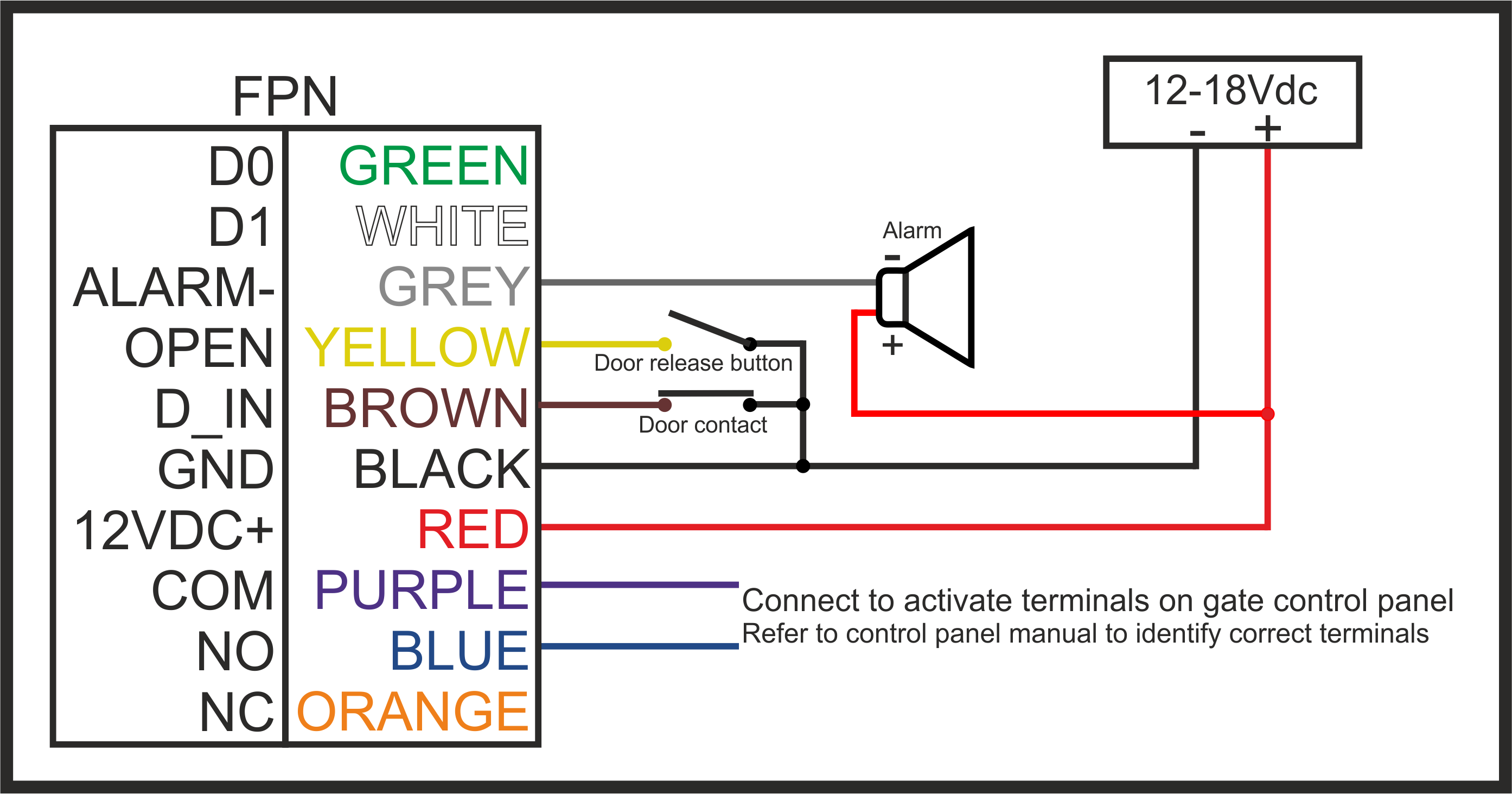

🔹Gate or door

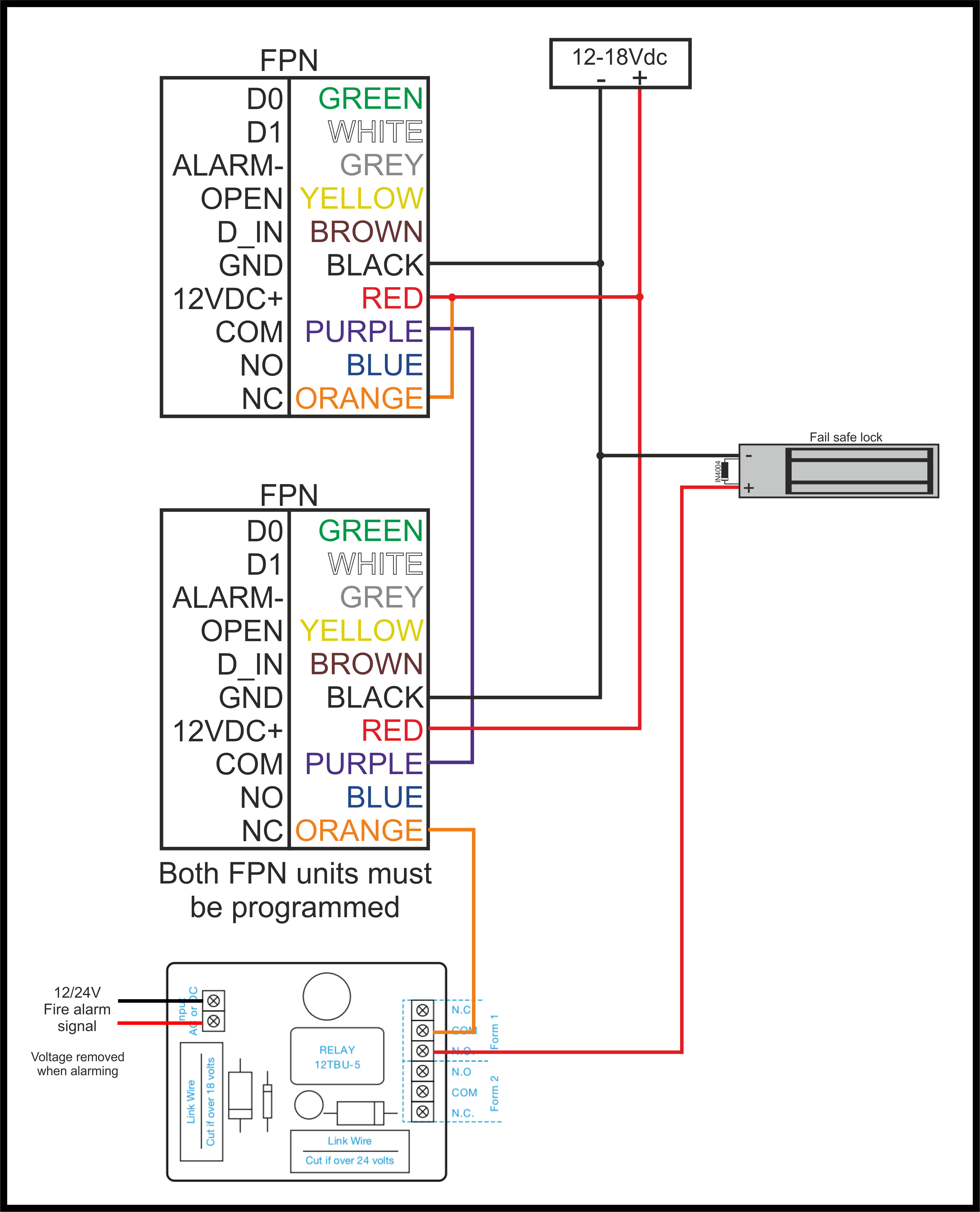

🔹Read in, read out - Mag lock

▪️Forgotten the master code

Solution:

Perform a factory reset. Master code will be reset to default. (123456)
How to: Power off, press and hold the exit button whilst powering up the unit. There will be 2 beeps, release the exit button, the LED turns yellow. Then read any two EM 125KHz cards, the LED will turn red. The first card read is the master add card, the second card read is the master delete card. User data is unaffected.

▪️ Lost the master cards

Any two EM cards can be programmed as master cards. Perform a factory reset: Power off, press and hold the exit button whilst powering up the unit. There will be 2 beeps, release the exit button, the LED turns yellow. Then read any two EM 125KHz cards, the LED will turn red. The first card read is the master add card, the second card read is the master delete card. User data is unaffected.

▪️Reader isn’t beeping when fob or card is presented

Solution:

Check your cards or fobs are the correct type & frequency for the reader. They must be 125KHz EM.

▪️Fingerprint isn't being accepted

Solution:

Check the fingerprint has been programmed correctly.
Cuts and dirt on fingertips can affect the readers ability to read fingerprints.

▪️3 beeps when trying to program something into a User ID

Answer:

User ID is already taken, please try a different one.

▪️How do I delete a specific fingerprint or card?

Answer:

When the device was installed, an issue record should have been kept. This may be on the last page of the supplied manual or kept digitally. Refer to the issue record and see page 8 of the manual.
If no issue record was kept, you may need to delete all users and re-add them.

▪️Unexpected beeping or flashing or not reading cards properly

Solution:

This can often be caused by a faulty power supply or not enough current. Fit a new transformer.
Double check all cabling and connections. Take off the wall and connect directly to the power supply to rule out any cabling issues or short circuits.
Perform a factory reset.
