CPK2 Access Control Door Entry Kit

Secure the door to your premises with this single door access control door entry kit with keypad and proximity entry. Ideal for offices, factories, labs, shops and more.

Only authorised users will be able to unlock the door and gain entry, using either a PIN code and/or proximity card/fob. The narrow style keypad is ideal for mounting to door frames or posts. Users can be easily added and deleted by the manager of the system using the supplied master cards or via the keypad. Free exit using the touchless button.

The kit Includes:

• KPN – Keypad with built-in Proximity – IP66 for exterior use, 2000 users
• CP280S – Single slimline monitored maglock. 600lbs holding force
• A300ZL – Z & L brackets for flexible maglock installation
• PSU-BB-12V-1A – Lockable metal box 12V battery back-up power supply
• BATT2.1 – 2.1Ah Battery ensures the door remains locked during power outages
• SGREL – No touch anti-microbial exit switch
• EDR-1N – Emergency resettable break glass, single pole
• 5 x PFOB-G – Stylish proximity tags with key ring attachment

Everything you need in one box!

Got bespoke requirements such as a fire rated mag lock or electric strike? Please contact us and we will be happy to help.

KPN:

• Operating voltage 12-28Vac/dc
• Waterproof, conforms to IP66
• One relay output
• Strong anti-vandal zinc alloy powder coated housing
• Full programming from the keypad
• Admin add/delete cards for quick programming of users
• 1000 users, supports card, PIN, or card + PIN
• Card frequency 125KHz EM
• PIN length 4-6 digits
• All metal backlit keys
• Wiegand 26-37 bits input & output, connect slave reader or to a controller
• Tri colour LED status display
• Integrated buzzer and alarm output
• Pulse (adjustable) or toggle mode
• User data can be transferred to other units
• Built in light dependent resistor (LDR) for antitamper
• Pre-wired 1 metre cable
• Dimensions: 134 x 55 x 21mm

PSU-BB-12V-1A:

• 12V 1A output
• Lockable metal box
• Battery charging circuit
• 195 x 80 x 225mm

CP280S:

• Holding force: 280KG (600lbs)
• Lock size: 250L x 48.5W x 25H (mm)
• Armature plate size: 180L x 38W x 11H(mm)
• Voltage: 12 or 24Vdc

SGREL:

• DDA Compliant
• 4 position sensitivity adjustment (Touch to 50mm hands free)
• Timed clean relay output
• Selectable blue, green or red LEDs
• Sounder on activation
• Scratch resistant anti microbial acrylic label. Supplied with screw covers for aesthetic purposes.
• Internal use only, IP52
• 86 x 86 x 30mm

EDR-1N:

• Single pole
• Emergency Door Release
• Includes audible/LED (selectable)
• Includes plastic front covers which flip up for operation.
• Resettable
• 87 x 87 x 60mm

2 year warranty on KPN & SGREL. 1 year warranty on all other items.

📄Kit Datasheet

📄KPN Datasheet

📄KPN Manual

📄Mag Lock Datasheet

📄Power Supply Datasheet

📄Exit Switch Datasheet

📄Break Glass Datasheet

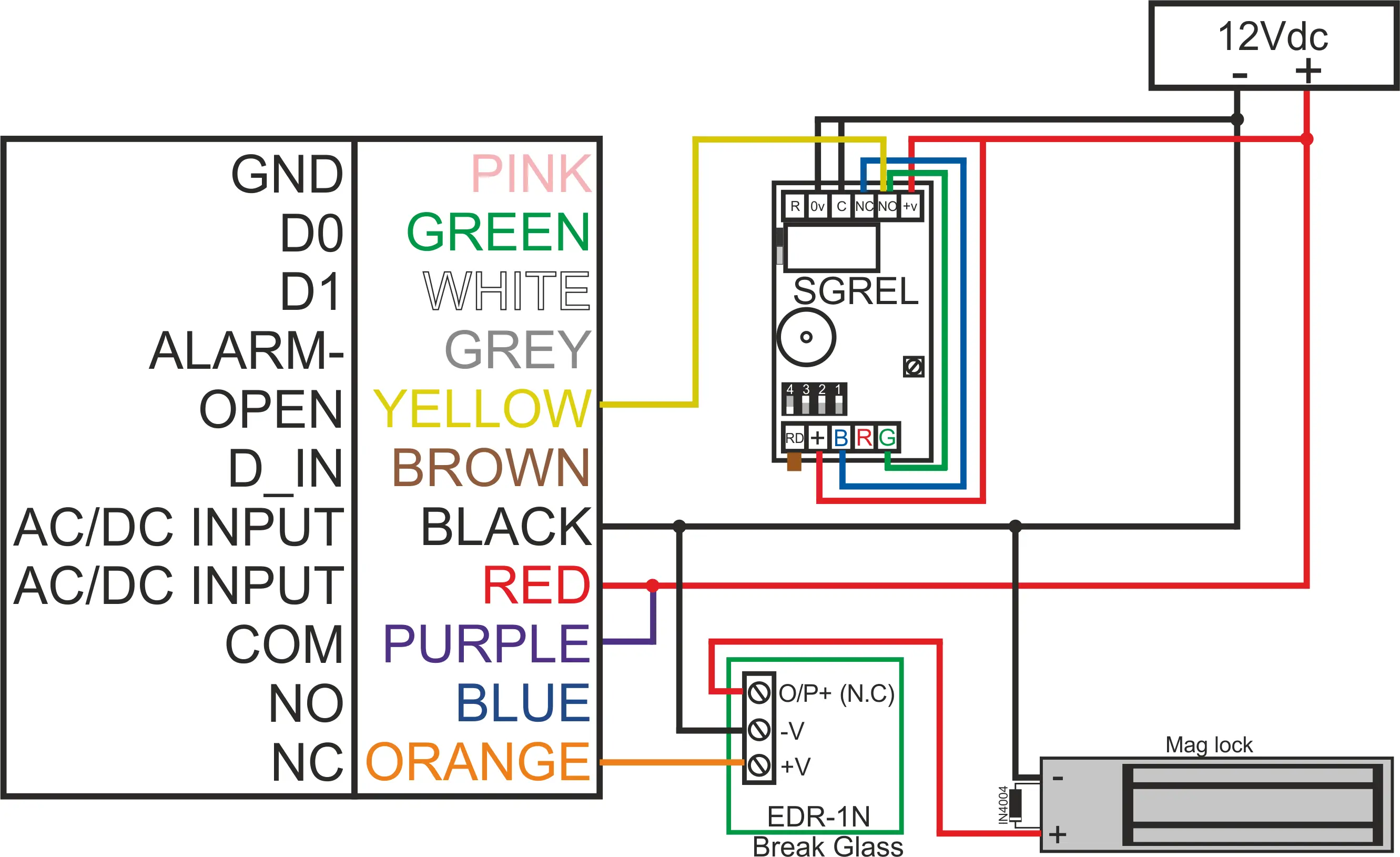

Wiring
