KEY2 Geba Key Switch 16A

The GEBA 16A Key Switch is a robust, heavy-duty control solution designed specifically for operating roller shutter motors. Engineered for durability and security, this key switch is compatible with all major brands of 230V AC tubular motors. It can be connected directly to a motor or integrated via volt-free inputs into a control panel.

Key Features:

• Direct Motor Control
  Suitable for use with all 230V AC tube motors. Simply connect and operate.
• Control Panel Compatibility
  Can also be connected to volt-free (dry contact) inputs on control panels.
• Durable, Anti-Vandal Design
  Built to last with an all-metal construction. Ideal for both commercial and industrial applications where resilience and reliability are key.
• Secure Access
  The front panel can only be removed using the dedicated keys, preventing unauthorised tampering and enhancing overall security.
• Includes 3 Keys
  Supplied with three keys for convenient access and distribution among authorised personnel.
• Keyed Alike Option Available
  Need multiple switches with the same key? Choose the KEY2-KA variant.

• Spring loaded centre off, up and down control, marked with up and down arrows
• Heavy duty anti vandal all metal construction
• Switch rating 230V ac, 16 amps
• KEY2-KA Supplied with 3 numbered keys (2A00016)
• KEY2 Supplied with 3 unnumbered keys
• Anti tamper - it requires the key to be inserted in order to gain access to the wiring terminals
• Dimensions: 75 x 75 x 45 mm
• Protection IP54

MANUAL

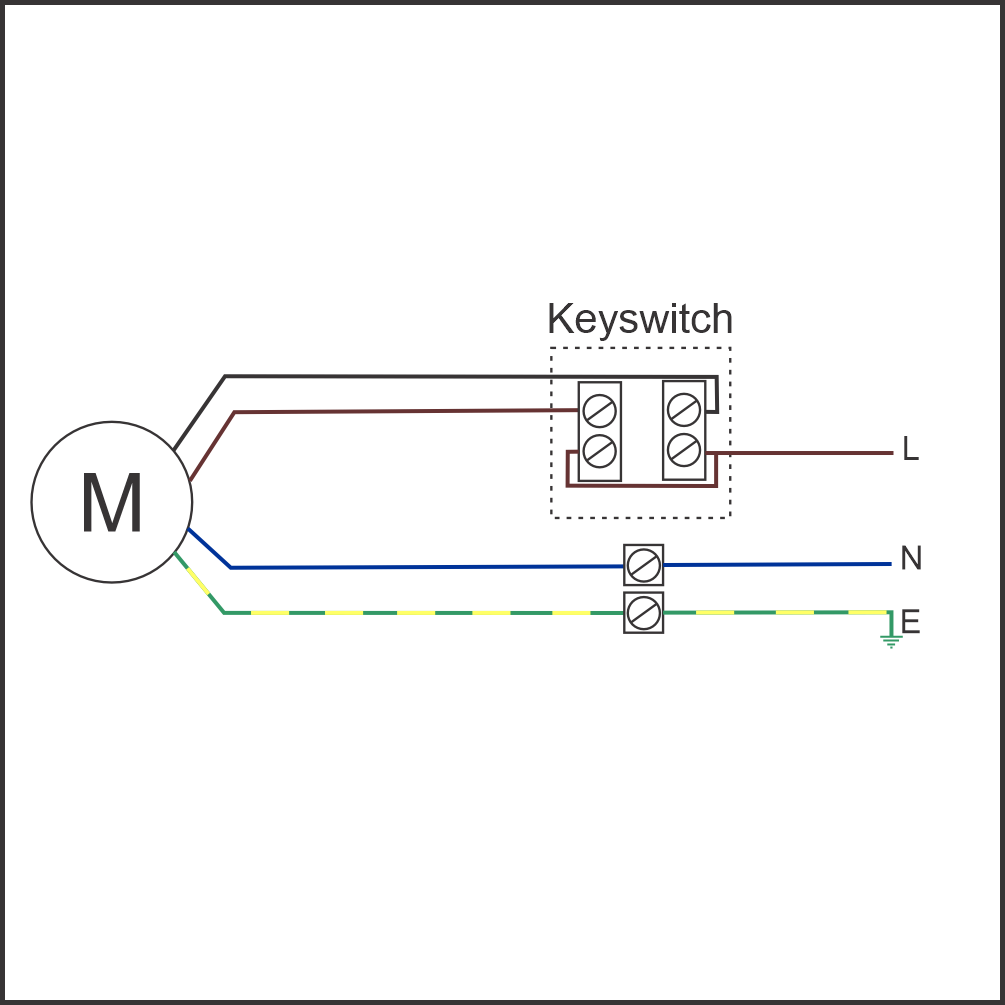

🔹Direct motor wiring

🔹RC1000/RC1000-MS

🔹RC2000

RC1000-MS, RC2000, ROLLER868, DMR-IND, I20

Or connect directly to the motor.
