OPTEX OA-EDGE T 900S Swing Door Safety Sensor – Master or Slave
£114.64 ex VAT
Optex OA EDGE T Silver — Safety for Automatic Swing Doors
A high performance safety sensor designed specifically for automatic swing doors. Using advanced infrared technology, it detects people and objects near the door to prevent collisions and ensure a safer experience for everyone.
With its wide detection area, the OA-EDGE T offers exceptional coverage around the door leaf, actively preventing accidental contact. It’s also been tested and approved by TÜV, and fully complies with EN 16005 safety standards, so you can count on proven reliability and peace of mind.
Quick and Easy Installation
Installation is fast and effortless. Simply click the master and slave modules into place and connect them with the included communication cable. The master module’s alternative power connector adds extra flexibility, helping you get the system up and running in no time.
Simple Setup and Maintenance
Fine tuning the OA-EDGE T is straightforward. Use the dip switches and levelling screw to make adjustments, then press the function switch to start the sensor’s automatic learning cycle. Once installed, you can easily check the sensor’s status via the visible LED indicator.
| Profile colour | Silver |

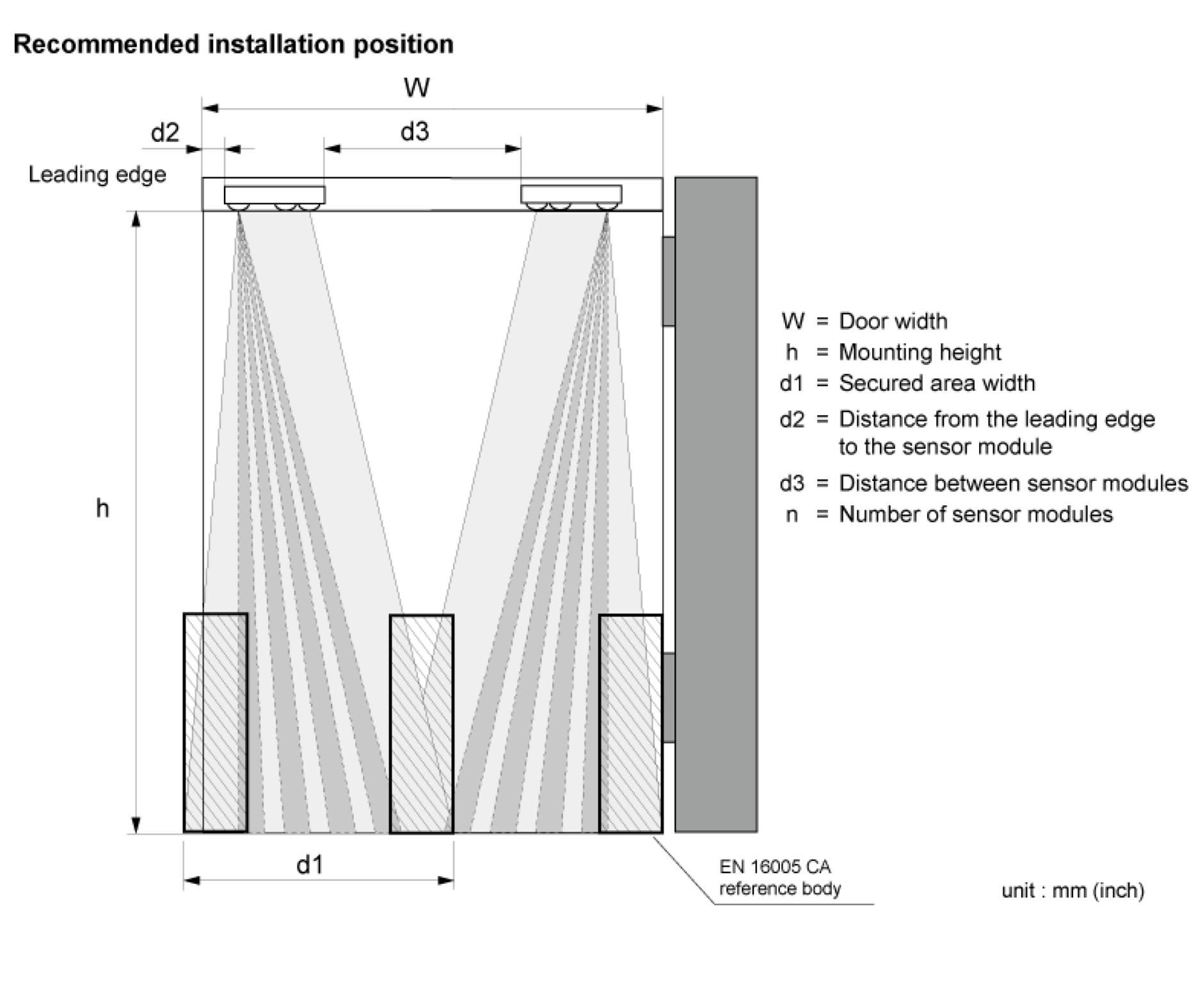

| Mounting height | 1.5 (4’11”) to 3.0 m (9’10”) |
| Detection method | Triangulation |
| Detection spots | 4 detection spots per module |
| Min. configuration | 1 master module + 1 LED module |
| Max. configuration | 4 sensor modules + 2 LED modules |
| Depth angle adjustment | 0ºC – +25ºC |
| Power supply | 12 – 24 VAC ±10% (50 /60 Hz) 12 – 30 VDC ±10% |
| Power consumption | < 1.3W ( < 2VA at AC) at min. configuration < 3.5W ( < 4.5VA at AC) at max. configuration |
| Test input | Opto coupler 10 – 30 VDC Current / 6mA max. |
| Safety/Test output 1 | Form C relay |
| Safety/Test output 2 | Voltage / 42 VDC Current / 0.3mA max.(resistance load) |
| Output hold time | Approx. 0.5 sec. |
| Response time | < 75m sec. |
| Operating temperature | -20ºC – +55ºC (-4ºF – +131ºF) |
| Operating humidity | 80% |
| IP rate | IP54 |
| Noise level | < 70dBA |
| Tested in compliance with | EN ISO 13849-1:2008 EN ISO 12978:2003 +A1:2009 DIN 18650-1:2010 Chapter 5.7.4 ESPE |
| Category | 2 (EN ISO13849-1 : 2008) |
| Performance level | d (EN ISO13849-1 : 2008) |

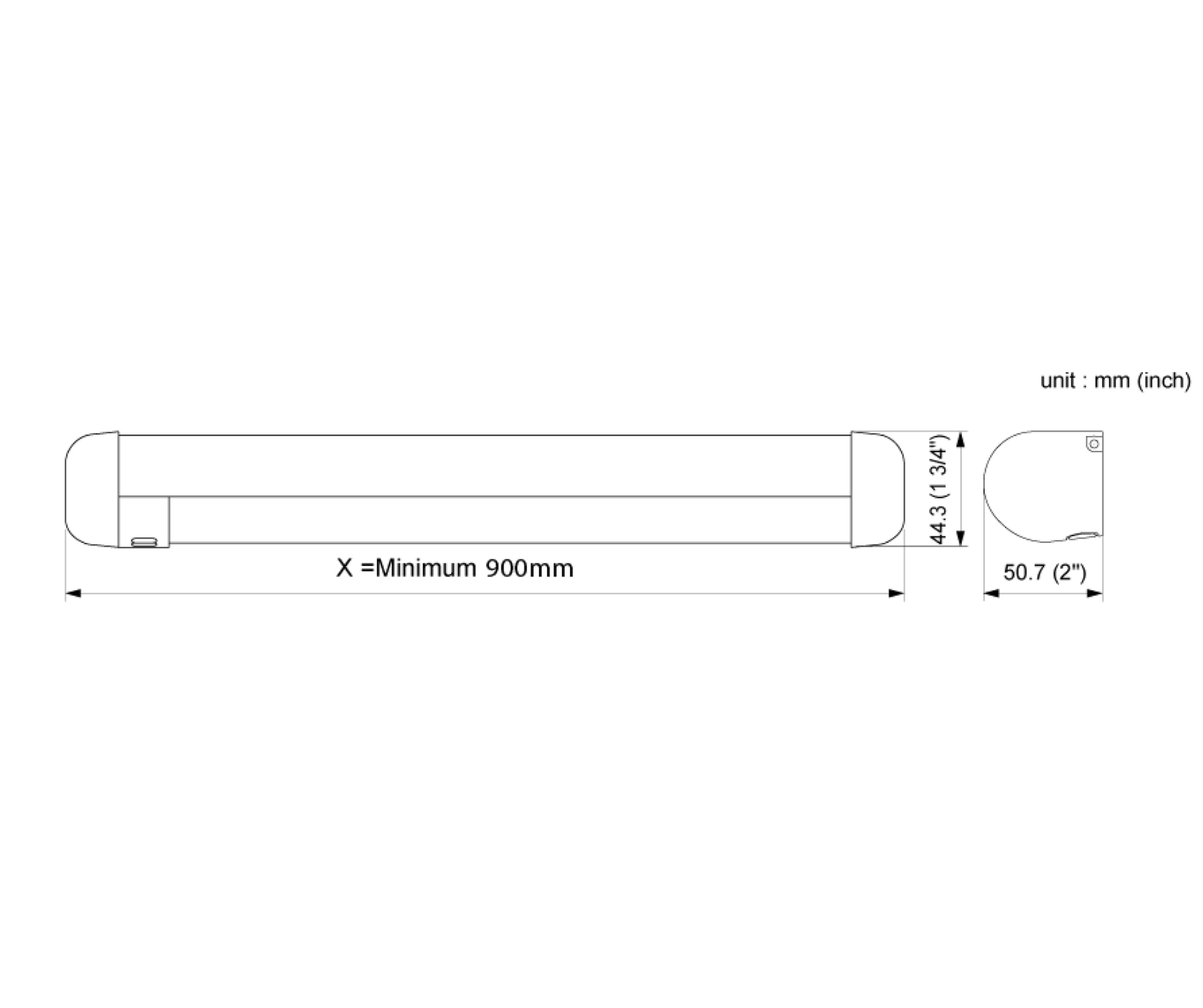

| Dimensions | 900 x 44,3 x 50,7 mm (l x h x d) |
