GRIDSCAN/PRO Safety Light Curtains

Performance and Compatibility

• Protects door openings up to 10 meters wide
• Supports closing speeds up to 1.6 m/s and opening speeds up to 3 m/s
• Door blanking function allows easy installation of the emitter and receiver directly into the door’s guide rails
• Can be mounted statically or dynamically. The operating mode can be changed from blanking to static and vice versa with a few simple gestures.

Key Features Include:

• Contactless safety system that covers the entire opening & prevents injuries and damage
• Simple integration into most door guide rail systems
• Includes a 10 m synchronization cable and 5 m connection cable for flexible installation

Flexible Output Options

The GridScan/Pro offers a selectable output of Frequency Safety Signal (FSS) or Push-Pull, enabling compatibility with all relevant control systems.

When configured with the FSS output, the device operates according to EN ISO 13849-1:2015 Cat. 2 – without requiring periodic testing – fully certified by TÜV.

• SIL 2 certified safety light curtain by TÜV NORD.
• Direct integration into the door edge due to door blanking. Easiest alignment.
• Combined output with PNP/NPN (push-pull) and FSS.
• Fulfils SIL 2 without testing if FSS output selected.
• Ideal for modernisation projects due to FSS control unit.
• Doors up to 10m wide and up to 1.6m/s closing.
• 2nd output for additional information.
• Cross section only 12 mm × 14.5 mm.
• 2M = 20 elements
• 2.5m = 22 elements

📄Datasheet

📄Manual

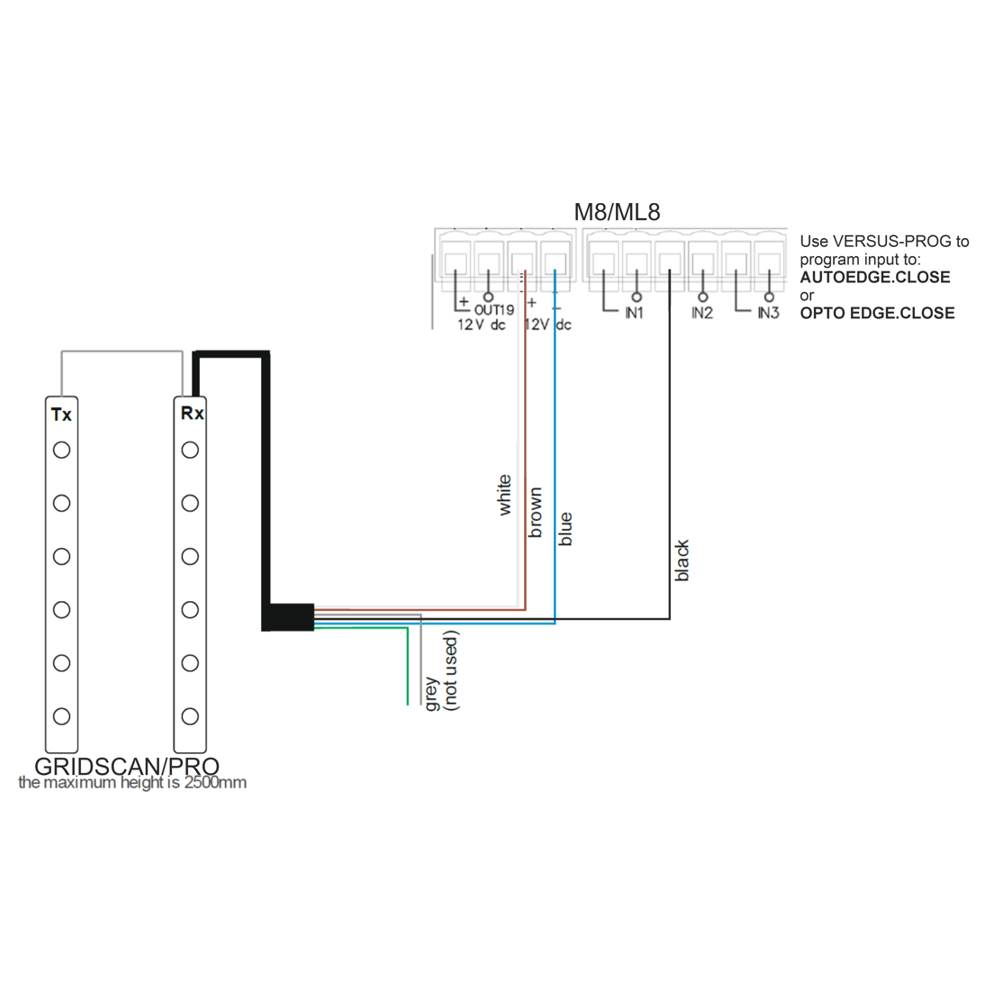

M8/ML8 Wiring

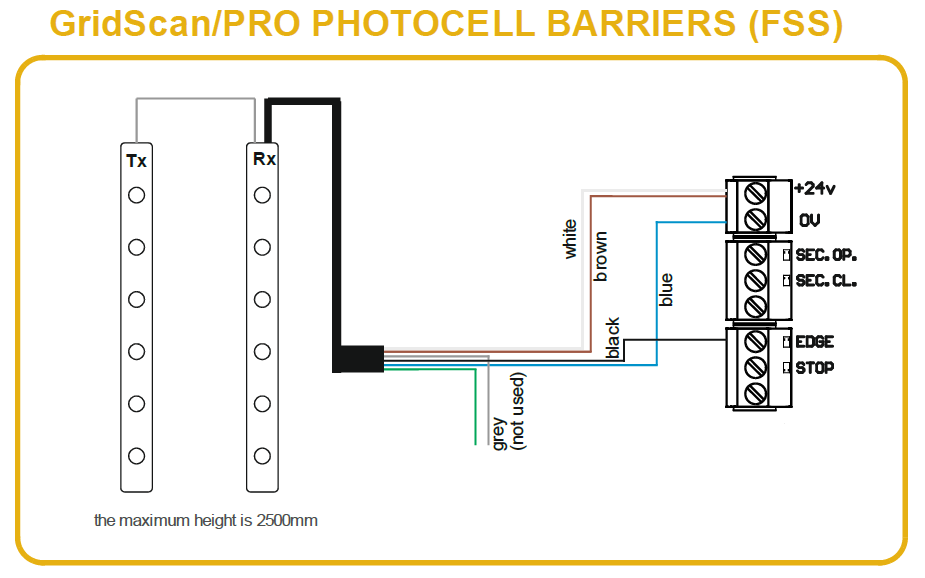

i20 Wiring

• i20
• M8 (In order for the GRIDSCAN to be compatible, the input must be modified with the VERSUS-PROG. Alternatively, please contact us to modify the input before ordering the M8).
• ML8 (In order for the GRIDSCAN to be compatible, the input must be modified with the VERSUS-PROG. Alternatively, please contact us to modify the input before ordering the ML8).
