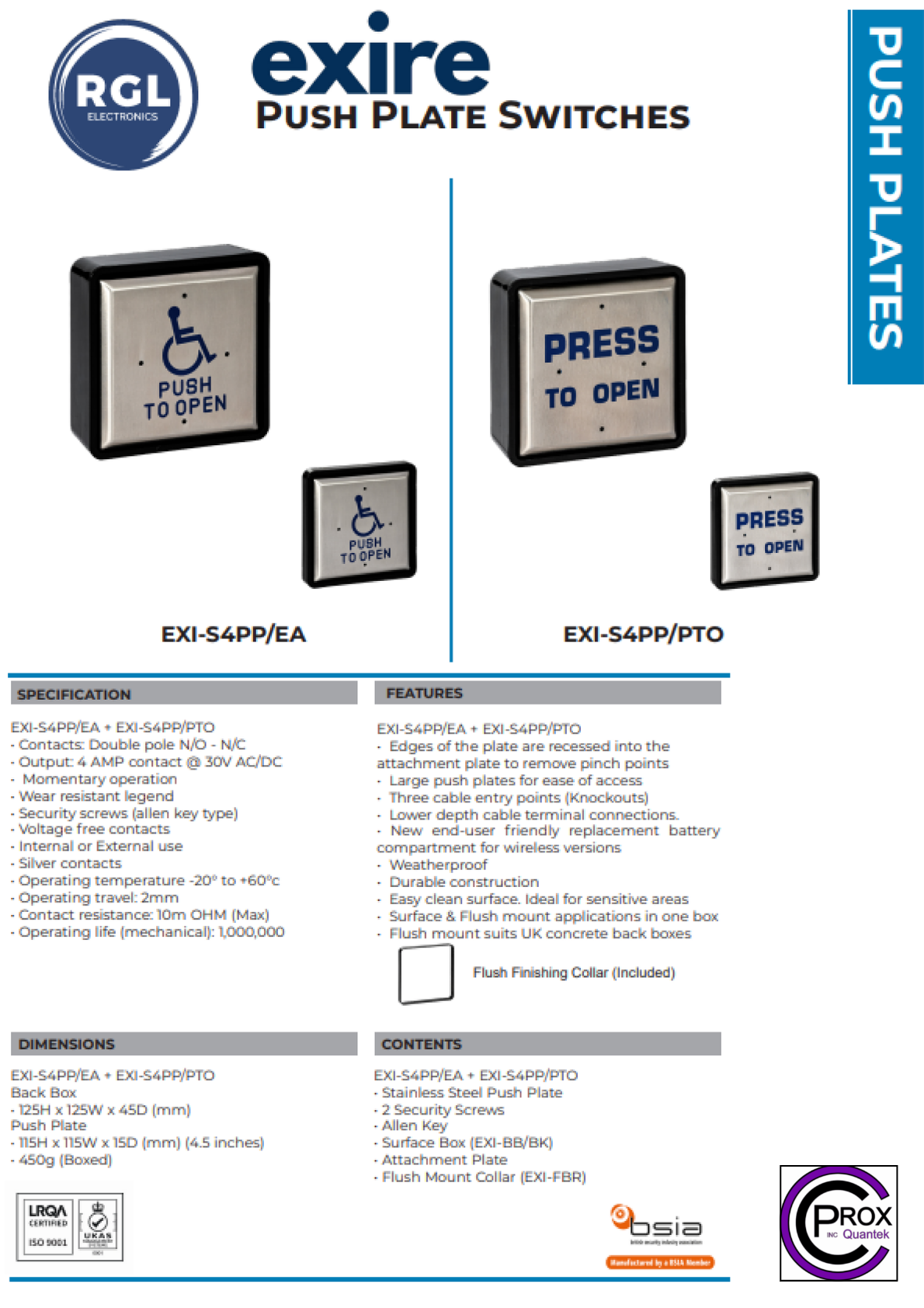

EXI-S4PP/PTO Heavy-Duty Push Plate Switch – Hardwired and Wireless
From £35.05 ex VAT
The EXI-S4PP/PTO is ideal for automatic door systems, access control applications and high traffic environments.
The square push pad features a large, easy-to-operate push plate and weatherproof construction, it delivers dependable performance in both internal and external installations.
Engineered with user safety and installer convenience in mind, the recessed plate design helps eliminate pinch points, while multiple cable entry options and flexible mounting configurations make installation quick and straightforward. Its smooth, easy-clean surface is particularly suited to healthcare, education and other sensitive environments where hygiene is a priority.
Built to withstand demanding daily use, the EXI-S4PP/PTO offers an impressive mechanical life of up to 1,000,000 operations, ensuring long-term reliability and reduced maintenance requirements.
Key Features
- Weatherproof design suitable for internal and external use
- Recessed plate edges help eliminate pinch points
- Durable, vandal-resistant construction
- Security fixing screws supplied (Allen key type)
- Smooth, easy-clean surface ideal for sensitive and hygienic environments
- Hardwired and wireless versions
- Three cable entry knockouts for installation flexibility
- Low-depth cable terminal connections for easier wiring
- Surface and flush mounting options supplied in a single box
- Compatible with UK concrete back boxes for flush mounting
- User-friendly battery compartment on wireless models for simple maintenance
- 2 year warranty!
| Product Code | EXI-S4PP/PTO |
| Contact Configuration | Double Pole N/O – N/C |
| Output Rating | 4A Contact @ 30V AC/DC |
| Operation Type | Momentary |
| Contact Type | Voltage-Free Silver Contacts |
| Operating Travel | 2mm |
| Contact Resistance | 10mΩ Max |
| Operating Temperature | -20°C to +60°C |
| Mechanical Life | 1,000,000 Operations |
| Legend Type | Wear-Resistant |
| Fixings | Security Screws (Allen Key Type) |
| Installation | Internal or External Use |
| Mounting Options | Surface & Flush Mount |
Dimensions:
Back Box
• 125H x 125W x 45D (mm)
Push Plate
• 115H x 115W x 15D (mm) (4.5 inches)
Receivers (for wireless version): VIEW ALL RECEIVERS |RX-2Â |Â RX-4Â |Â RX-2-5AÂ |Â RX-MINI-1Â |Â RX-MINI-1-PLUS |Â RX-TÂ |Â GDRC
| Weight | N/A |
|---|---|
| Dimensions | 125 × 125 × 60 mm |
